이코에코(Eco²) Agent: Multi-Intent E2E Test Plan이코에코(Eco²)/Plans 2026. 1. 19. 05:28

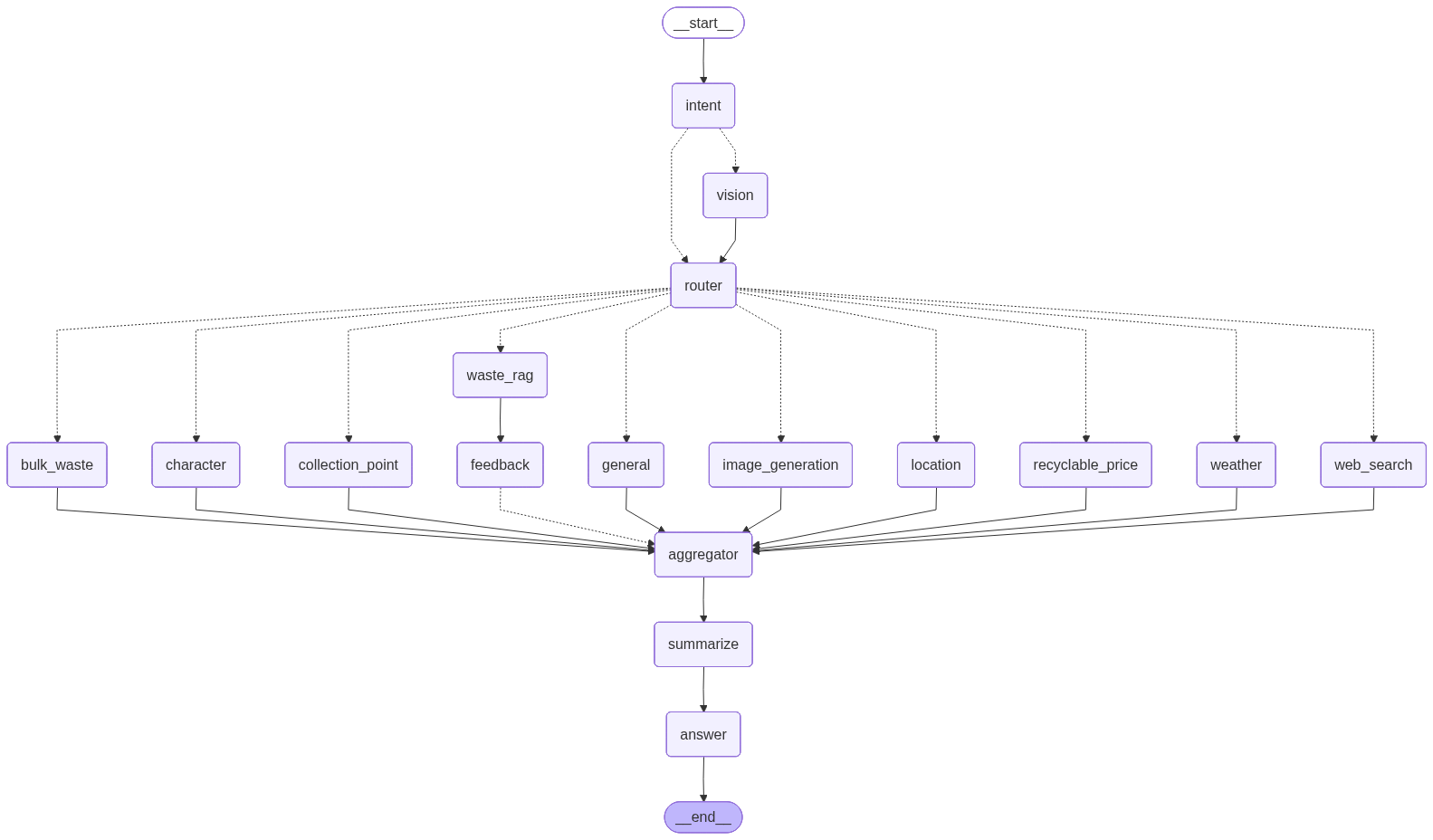

LangGraph 시각화: graph.get_graph().draw_mermaid_png() Date: 2026-01-18
Scope: Chat API + Chat Worker + Event Router + SSE Gateway
Status: Ready for Execution
Executive Summary
Eco² Chat 서비스의 Intent별 E2E 테스트 진행에 사용한 Plan 문서입니다.
DIRECT exchange 배포 후 전체 파이프라인 검증을 목표로 합니다.테스트 범위:
- 10개 Intent 분류 및 라우팅
- LangGraph 서브에이전트 병렬 실행
- Redis 이벤트 버스 (Streams → Pub/Sub)
- SSE 실시간 스트리밍
1. System Architecture
1.1 E2E Test Flow
┌─────────────────────────────────────────────────────────────────┐ │ E2E Test Coverage │ ├─────────────────────────────────────────────────────────────────┤ │ │ │ [1] API Request [2] Queue [3] Processing │ │ ┌─────────┐ ┌─────────┐ ┌─────────────────┐ │ │ │ curl │──POST───▶│RabbitMQ │──────▶ │ chat-worker │ │ │ │ │ │ DIRECT │ │ (LangGraph) │ │ │ └─────────┘ └─────────┘ └─────────────────┘ │ │ │ │ │ │ chat_id │ │ │ job_id XADD │ │ │ │ ▼ │ │ │ ┌─────────────────┐ │ │ │ │ Redis Streams │ │ │ │ │ chat:events:* │ │ │ │ └─────────────────┘ │ │ │ │ │ │ │ XREADGROUP │ │ │ ▼ │ │ │ ┌─────────────────┐ │ │ │ │ Event Router │ │ │ │ │ (Lua Script) │ │ │ │ └─────────────────┘ │ │ │ │ │ │ │ PUBLISH │ │ │ ▼ │ │ [6] SSE Response [5] Pub/Sub [4] State Update │ │ ┌─────────┐ ┌─────────┐ ┌─────────────────┐ │ │ │ Browser │◀───SSE───│sse:events│◀──────│ chat:state:* │ │ │ │ curl │ │ {job_id}│ │ (KV Store) │ │ │ └─────────┘ └─────────┘ └─────────────────┘ │ │ │ └─────────────────────────────────────────────────────────────────┘1.2 Endpoint Mapping
Step Endpoint Service Description 1 POST /api/v1/chatchat-api 채팅 생성 → chat_id2 POST /api/v1/chat/{chat_id}/messageschat-api 메시지 전송 → job_id3 GET /api/v1/chat/{job_id}/eventssse-gateway SSE 구독 1.3 Istio VirtualService Routing
# Chat API /api/v1/chat/** → chat-api.chat.svc.cluster.local:8000 # SSE Gateway (regex match) /api/v1/{service}/{id}/events → sse-gateway.sse-consumer.svc.cluster.local:8000
2. Intent Classification
2.1 Intent Types (10개)
Intent Node Description External API WASTEwaste_rag분리배출 질문 RAG (Pinecone) CHARACTERcharacter캐릭터 정보 gRPC (character-grpc) LOCATIONlocation장소 검색 Kakao Map API BULK_WASTEbulk_waste대형폐기물 행정안전부 API RECYCLABLE_PRICErecyclable_price재활용 시세 한국환경공단 API COLLECTION_POINTcollection_point수거함 위치 KECO API WEB_SEARCHweb_search웹 검색 Tavily/Brave API IMAGE_GENERATIONimage_generation이미지 생성 OpenAI DALL-E GENERALgeneral일반 대화 LLM Direct 2.2 Dynamic Router (Enrichment Rules)
# Intent → 자동 추가되는 enrichment 노드 ENRICHMENT_RULES = { "waste": ("weather",), # 분리배출 → 날씨 팁 "bulk_waste": ("weather",), # 대형폐기물 → 날씨 팁 } # 조건부 Enrichment if user_location is not None: add("weather") # 위치 있으면 날씨 추가2.3 Multi-Intent Fanout
사용자: "종이 버리는 법이랑 수거함도 알려줘" Intent Node 결과: intent = "waste" additional_intents = ["collection_point"] Dynamic Router 결과: Send("waste_rag", state) # 주 intent Send("collection_point", state) # multi-intent Send("weather", state) # enrichment → 3개 노드 병렬 실행!
3. Test Cases
3.1 Test Matrix
# Intent Test Message Expected Nodes Location 1 WASTE "플라스틱 분리배출 방법 알려줘" waste_rag, weather No 2 CHARACTER "플라스틱 버리면 어떤 캐릭터 얻어?" character No 3 LOCATION "근처 제로웨이스트샵 알려줘" location Yes 4 BULK_WASTE "소파 버리려면 어떻게 해?" bulk_waste, weather No 5 RECYCLABLE_PRICE "고철 시세 얼마야?" recyclable_price No 6 COLLECTION_POINT "근처 의류수거함 어디야?" collection_point Yes 7 WEB_SEARCH "최신 분리배출 정책 알려줘" web_search No 8 IMAGE_GENERATION "페트병 버리는 법 이미지로 만들어줘" image_generation No 9 GENERAL "안녕하세요" general No 10 MULTI_INTENT "종이 버리는 법이랑 수거함도 알려줘" waste_rag, collection_point, weather Yes 3.2 Expected SSE Event Sequence
event: intent data: {"stage":"intent","status":"completed","progress":15} event: waste_rag data: {"stage":"waste_rag","status":"started","progress":20} event: weather data: {"stage":"weather","status":"started","progress":25} event: waste_rag data: {"stage":"waste_rag","status":"completed","progress":40} event: weather data: {"stage":"weather","status":"completed","progress":45} event: aggregator data: {"stage":"aggregator","status":"started","progress":55} event: aggregator data: {"stage":"aggregator","status":"completed","progress":65} event: token data: {"stage":"token","content":"플라스틱은","seq":1001} event: token data: {"stage":"token","content":" 재질에","seq":1002} ... (토큰 스트리밍) event: done data: {"stage":"done","status":"success","progress":100,"result":{...}}
4. Verification Checklist
4.1 RabbitMQ Exchange
# 클러스터에서 실행 kubectl exec -n rabbitmq eco2-rabbitmq-server-0 -- \ rabbitmqadmin -u <user> -p <pass> list exchanges | grep chat_tasks # Expected: type=direct4.2 SSE Event Validation
Item Validation Intent 분류 intent이벤트의stage값 확인병렬 실행 여러 started이벤트 수신 (순서 무관)Progress 증가 0 → 15 → 20~55 → 75 → 100 단조 증가 Token 스트리밍 seq연속 증가,content조각완료 done이벤트의result필드4.3 Redis State
# State 확인 kubectl exec -n redis rfr-streams-redis-0 -- \ redis-cli HGETALL "chat:state:{job_id}" # Expected keys: stage, status, progress, seq, result
5. Test Script
5.1 Location
scripts/e2e-intent-test.sh5.2 Usage
# Interactive mode ./scripts/e2e-intent-test.sh <JWT_TOKEN> # Run all tests ./scripts/e2e-intent-test.sh <JWT_TOKEN> --all # Quick test (WASTE, GENERAL only) ./scripts/e2e-intent-test.sh <JWT_TOKEN> --quick # Custom timeout SSE_TIMEOUT=120 ./scripts/e2e-intent-test.sh <JWT_TOKEN>5.3 Environment Variables
Variable Default Description BASE_URLhttps://api.dev.growbin.appAPI 엔드포인트 SSE_TIMEOUT60SSE 구독 타임아웃 (초)
6. Troubleshooting
6.1 Common Issues
Issue Cause Solution 401 Unauthorized JWT 만료 새 토큰 발급 404 Chat not found chat_id 불일치 새 채팅 생성 SSE timeout Worker 지연 SSE_TIMEOUT 증가 No events Exchange 미생성 첫 메시지 후 확인 6.2 Debug Commands
# chat-worker 로그 kubectl logs -n chat -l app=chat-worker -f --tail=100 # event-router 로그 kubectl logs -n event-router -l app=event-router -f --tail=50 # sse-gateway 로그 kubectl logs -n sse-consumer -l app=sse-gateway -f --tail=50 # Redis Pub/Sub 모니터링 kubectl exec -n redis rfr-pubsub-redis-0 -- \ redis-cli PSUBSCRIBE "sse:events:*"
7. Test Results Template
## E2E Test Results - [DATE] ### Environment - Branch: `refactor/reward-fanout-exchange` - Exchange Type: DIRECT - Cluster: dev ### Results | Intent | Status | Duration | Notes | |--------|--------|----------|-------| | WASTE | PASS | 3.2s | weather enrichment OK | | CHARACTER | PASS | 2.1s | gRPC call OK | | LOCATION | PASS | 4.5s | Kakao API OK | | BULK_WASTE | PASS | 3.8s | | | RECYCLABLE_PRICE | PASS | 2.5s | | | COLLECTION_POINT | PASS | 3.1s | | | WEB_SEARCH | PASS | 5.2s | | | IMAGE_GENERATION | PASS | 8.5s | DALL-E 응답 지연 | | GENERAL | PASS | 1.5s | | | MULTI_INTENT | PASS | 4.8s | 3 nodes parallel | ### Issues Found - None ### Screenshots - [SSE Event Log](./screenshots/sse-events.png)
8. Next Steps
- 테스트 실행:
./scripts/e2e-intent-test.sh <TOKEN> --all - 결과 기록: 위 템플릿에 결과 작성
- 이슈 발견 시: Troubleshooting 섹션 참조
- PR 머지 후: Production 배포 전 동일 테스트 수행
Appendix: API Response Examples
A.1 Create Chat Response
{ "id": "a1b2c3d4-e5f6-7890-abcd-ef1234567890", "title": null, "created_at": "2026-01-18T10:30:00Z" }A.2 Send Message Response
{ "job_id": "f1e2d3c4-b5a6-7890-1234-567890abcdef", "stream_url": "/api/v1/chat/f1e2d3c4-b5a6-7890-1234-567890abcdef/events", "status": "queued" }A.3 SSE Done Event
{ "stage": "done", "status": "success", "progress": 100, "seq": 150, "result": { "answer": "플라스틱 분리배출 방법은...", "sources": ["waste_rag", "weather"], "metadata": { "intent": "waste", "nodes_executed": ["waste_rag", "weather", "aggregator", "answer"], "total_tokens": 1523 } } }'이코에코(Eco²) > Plans' 카테고리의 다른 글
