Idempotent Consumer: 중복 메시지 처리 패턴이코에코(Eco²)/Foundations 2025. 12. 25. 22:13
참고: Enterprise Integration Patterns - Gregor Hohpe
참고: Microservices Patterns - Chris Richardson

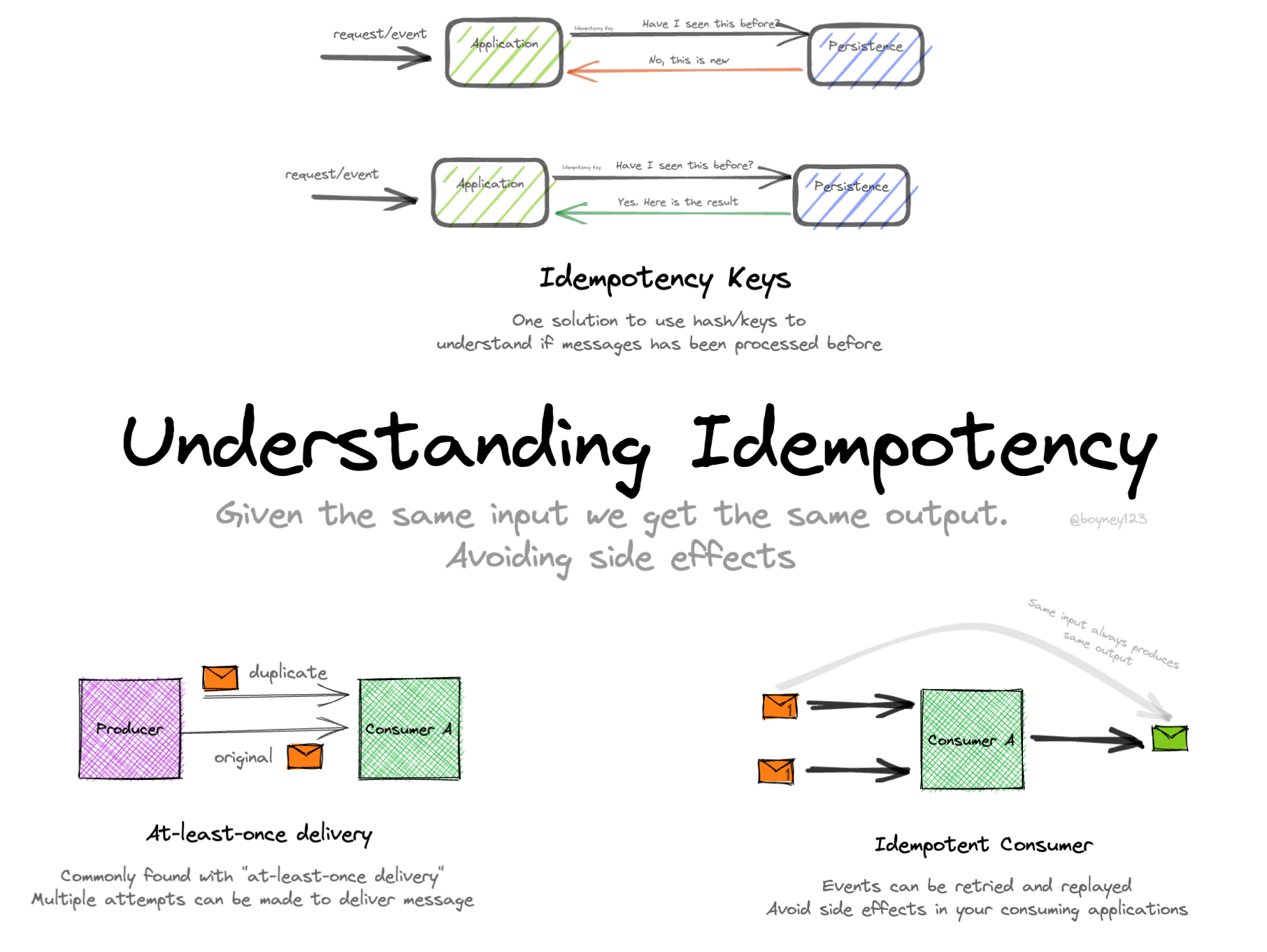

분산 시스템에서 메시지는 정확히 한 번(Exactly-Once) 전달되기 어렵다.
네트워크 장애, Consumer 재시작, Broker 장애 등으로 같은 메시지가 여러 번 전달(At-Least-Once)될 수 있다.┌─────────────────────────────────────────────────────────────┐ │ 메시지 중복 전달 시나리오 │ ├─────────────────────────────────────────────────────────────┤ │ │ │ 시나리오 1: Ack 유실 │ │ ──────────────────── │ │ Kafka/RabbitMQ Consumer │ │ │ │ │ │ │ 1. 메시지 전달 │ │ │ │ ──────────────────▶ │ │ │ │ │ 2. 처리 완료 │ │ │ │ (DB 저장) │ │ │ 3. Ack │ │ │ │ ◀─────── X ───────── │ ← 네트워크 장애로 Ack 유실 │ │ │ │ │ │ │ 4. Ack 없음 → 재전송│ │ │ │ ──────────────────▶ │ │ │ │ │ 5. 또 처리 (중복!) │ │ │ │ │ │ │ │ 시나리오 2: Consumer 재시작 │ │ ──────────────────────── │ │ • 메시지 처리 중 Consumer 크래시 │ │ • Offset 커밋 전이라 재시작 시 같은 메시지 다시 수신 │ │ │ │ 시나리오 3: Producer 재시도 │ │ ──────────────────────── │ │ • Producer가 타임아웃으로 재전송 │ │ • 실제로는 첫 번째 전송이 성공했을 수 있음 │ │ │ └─────────────────────────────────────────────────────────────┘결과: 같은 메시지로 포인트가 두 번 지급되거나, 같은 주문이 두 번 처리됨
해결책은 전달되는 메시지가 멱등성(Idempotency)을 유지해 같은 연산을 여러 번 수행해도 결과가 같아야 한다.멱등성의 정의
수학적 정의
f(f(x)) = f(x)같은 함수를 여러 번 적용해도 결과가 변하지 않음.
실제 예시
┌─────────────────────────────────────────────────────────────┐ │ 멱등 vs 비멱등 연산 │ ├─────────────────────────────────────────────────────────────┤ │ │ │ ✅ 멱등 연산 (Idempotent): │ │ ─────────────────────── │ │ • "주문 #123의 상태를 '완료'로 변경" │ │ 1회: 진행중 → 완료 │ │ 2회: 완료 → 완료 (결과 동일) │ │ │ │ • "사용자 #456의 이메일을 'a@b.com'으로 설정" │ │ 1회: null → a@b.com │ │ 2회: a@b.com → a@b.com (결과 동일) │ │ │ │ • DELETE /users/123 │ │ 1회: 삭제됨 │ │ 2회: 이미 없음 (결과 동일) │ │ │ │ ❌ 비멱등 연산 (Non-Idempotent): │ │ ───────────────────────── │ │ • "잔액에 1000원 추가" │ │ 1회: 5000 → 6000 │ │ 2회: 6000 → 7000 (결과 다름!) │ │ │ │ • "재고 1개 차감" │ │ 1회: 10 → 9 │ │ 2회: 9 → 8 (결과 다름!) │ │ │ │ • POST /orders (새 주문 생성) │ │ 1회: 주문 #1 생성 │ │ 2회: 주문 #2 생성 (중복 주문!) │ │ │ └─────────────────────────────────────────────────────────────┘구현 패턴
1. Natural Idempotency (자연적 멱등)
연산 자체가 멱등하도록 설계:
┌─────────────────────────────────────────────────────────────┐ │ Natural Idempotency │ ├─────────────────────────────────────────────────────────────┤ │ │ │ ❌ 비멱등 설계: │ │ "포인트 100 추가" │ │ │ │ UPDATE users SET points = points + 100 WHERE id = ? │ │ → 실행할 때마다 100씩 증가 │ │ │ │ ✅ 멱등 설계: │ │ "event_id=abc로 포인트를 6000으로 설정" │ │ │ │ UPDATE users │ │ SET points = 6000, │ │ last_event_id = 'abc' │ │ WHERE id = ? AND (last_event_id IS NULL │ │ OR last_event_id != 'abc') │ │ → 같은 event_id로는 한 번만 적용 │ │ │ │ 또는 INSERT ... ON CONFLICT DO NOTHING: │ │ INSERT INTO point_grants (event_id, user_id, amount) │ │ VALUES ('abc', 123, 100) │ │ ON CONFLICT (event_id) DO NOTHING │ │ → event_id가 같으면 무시 │ │ │ └─────────────────────────────────────────────────────────────┘2. Idempotency Key 패턴
클라이언트가 고유 키를 생성하여 전달:
┌─────────────────────────────────────────────────────────────┐ │ Idempotency Key Pattern │ ├─────────────────────────────────────────────────────────────┤ │ │ │ Producer Consumer │ │ ┌─────────────────────┐ ┌─────────────────────┐ │ │ │ { │ │ │ │ │ │ "idempotency_key":│ ───────▶ │ 1. key 존재 확인 │ │ │ │ "scan-abc-v1", │ │ │ │ │ │ "user_id": 123, │ │ 2. 없으면 처리 │ │ │ │ "points": 100 │ │ │ │ │ │ } │ │ 3. key 저장 │ │ │ └─────────────────────┘ │ │ │ │ │ 4. 있으면 무시 │ │ │ └─────────────────────┘ │ │ │ │ Key 구성 예시: │ │ • "{event_type}-{aggregate_id}-{version}" │ │ • "{task_id}-{step}" │ │ • "{user_id}-{date}-{action}" │ │ │ │ 주의: Key는 비즈니스적으로 유일해야 함 │ │ • ❌ UUID만 사용 → 재시도 시 다른 UUID 생성 │ │ • ✅ 비즈니스 ID 조합 → 같은 작업은 같은 Key │ │ │ └─────────────────────────────────────────────────────────────┘3. Inbox Pattern (메시지 추적 테이블)
수신한 모든 메시지를 DB에 기록:
┌─────────────────────────────────────────────────────────────┐ │ Inbox Pattern │ ├─────────────────────────────────────────────────────────────┤ │ │ │ 메시지 수신 → Inbox 테이블 확인 → 처리 → Inbox 저장 │ │ │ │ Inbox Table: │ │ ┌─────────────────────────────────────────────────────┐ │ │ │ message_id │ event_type │ processed_at │ status │ │ │ ├────────────┼────────────┼──────────────┼───────────┤ │ │ │ evt-001 │ scan.done │ 2025-12-19 │ COMPLETED │ │ │ │ evt-002 │ scan.done │ 2025-12-19 │ COMPLETED │ │ │ │ evt-003 │ scan.done │ NULL │ PENDING │ │ │ └─────────────────────────────────────────────────────┘ │ │ │ │ 처리 로직: │ │ async def handle(message): │ │ # 1. Inbox 확인 (SELECT FOR UPDATE) │ │ existing = await inbox.get(message.id) │ │ if existing and existing.status == "COMPLETED": │ │ return # 이미 처리됨 │ │ │ │ # 2. Inbox에 PENDING으로 기록 │ │ await inbox.insert(message.id, status="PENDING") │ │ │ │ # 3. 실제 비즈니스 로직 실행 │ │ await process_business_logic(message) │ │ │ │ # 4. COMPLETED로 업데이트 │ │ await inbox.update(message.id, status="COMPLETED") │ │ │ │ 장점: 완전한 추적, 재처리 가능 │ │ 단점: DB 오버헤드, 테이블 관리 필요 │ │ │ └─────────────────────────────────────────────────────────────┘4. Deduplication Window (시간 기반 중복 제거)
일정 시간 동안만 중복 체크:
┌─────────────────────────────────────────────────────────────┐ │ Deduplication Window │ ├─────────────────────────────────────────────────────────────┤ │ │ │ Redis TTL 사용: │ │ │ │ async def handle(message): │ │ key = f"processed:{message.id}" │ │ │ │ # SETNX: 없으면 설정, 있으면 실패 │ │ is_new = await redis.setnx(key, "1") │ │ if not is_new: │ │ return # 이미 처리됨 │ │ │ │ # TTL 설정 (24시간) │ │ await redis.expire(key, 86400) │ │ │ │ # 비즈니스 로직 │ │ await process(message) │ │ │ │ ┌─────────────────────────────────────────────────────┐ │ │ │ Redis │ │ │ │ ┌────────────────────────────────────────────────┐│ │ │ │ │ processed:evt-001 = "1" TTL: 86400s ││ │ │ │ │ processed:evt-002 = "1" TTL: 85000s ││ │ │ │ │ processed:evt-003 = "1" TTL: 80000s ││ │ │ │ │ ││ │ │ │ │ → 24시간 후 자동 삭제 ││ │ │ │ └────────────────────────────────────────────────┘│ │ │ └─────────────────────────────────────────────────────┘ │ │ │ │ 장점: 빠름, 메모리 효율적 (TTL로 자동 정리) │ │ 단점: TTL 후 같은 메시지 재처리 가능 │ │ → 정상 상황에서는 문제 없음 (재전송은 빠르게 발생) │ │ │ └─────────────────────────────────────────────────────────────┘저장소 선택
비교표
Redis TTL ⚡ 매우 빠름 ❌ 휘발 제한적 단기 중복 제거 DB 테이블 보통 ✅ 영구 무제한 완전한 추적 필요 Bloom Filter ⚡ 빠름 ❌ 휘발 매우 작음 대용량, 거짓 양성 허용 Redis TTL (권장: 대부분의 경우)
class RedisIdempotencyStore: def __init__(self, redis: Redis, ttl: int = 86400): self.redis = redis self.ttl = ttl # 기본 24시간 async def is_processed(self, message_id: str) -> bool: """이미 처리된 메시지인지 확인""" return await self.redis.exists(f"processed:{message_id}") async def mark_processed(self, message_id: str) -> bool: """처리 완료 표시 (원자적 연산)""" key = f"processed:{message_id}" # SETNX + EXPIRE를 원자적으로 수행 result = await self.redis.set(key, "1", nx=True, ex=self.ttl) return result is not None # True면 새로 설정됨DB 테이블 (권장: 감사/추적 필요 시)
# 테이블 정의 """ CREATE TABLE processed_events ( event_id VARCHAR(255) PRIMARY KEY, event_type VARCHAR(255) NOT NULL, aggregate_id VARCHAR(255), processed_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP, processor VARCHAR(255), -- 어떤 Consumer가 처리했는지 INDEX idx_aggregate (aggregate_id), INDEX idx_processed_at (processed_at) ); """ class DBIdempotencyStore: async def check_and_mark(self, event_id: str, event_type: str) -> bool: """확인과 마킹을 원자적으로 수행""" try: await self.db.execute(""" INSERT INTO processed_events (event_id, event_type, processor) VALUES (:event_id, :event_type, :processor) """, { "event_id": event_id, "event_type": event_type, "processor": self.consumer_id, }) return True # 새로 삽입됨 → 처리 필요 except UniqueViolationError: return False # 이미 존재 → 중복Bloom Filter (대용량 + 거짓 양성 허용)
from pybloom_live import BloomFilter class BloomIdempotencyStore: """ 확률적 자료구조: "없음"은 확실, "있음"은 불확실 거짓 양성(False Positive): 실제로 없는데 있다고 판단 → 일부 메시지가 중복으로 잘못 판단되어 무시될 수 있음 → 중요하지 않은 대용량 처리에 적합 """ def __init__(self, capacity: int = 10_000_000, error_rate: float = 0.001): self.bloom = BloomFilter(capacity=capacity, error_rate=error_rate) def is_probably_processed(self, message_id: str) -> bool: return message_id in self.bloom def mark_processed(self, message_id: str): self.bloom.add(message_id)Idempotency Key 설계
좋은 Key의 조건
┌─────────────────────────────────────────────────────────────┐ │ Idempotency Key 설계 원칙 │ ├─────────────────────────────────────────────────────────────┤ │ │ │ 1. 비즈니스적으로 유일해야 함 │ │ ───────────────────────────── │ │ 같은 비즈니스 작업은 같은 Key를 생성해야 함 │ │ │ │ ❌ 나쁜 예: │ │ key = str(uuid.uuid4()) # 재시도마다 다른 Key │ │ │ │ ✅ 좋은 예: │ │ key = f"{event_type}:{aggregate_id}:{event_version}" │ │ key = f"scan:{task_id}:completed" │ │ key = f"reward:{user_id}:{scan_id}" │ │ │ │ 2. 충돌을 피해야 함 │ │ ───────────────────── │ │ 다른 비즈니스 작업이 같은 Key를 생성하면 안 됨 │ │ │ │ ❌ 나쁜 예: │ │ key = f"{user_id}" # 같은 사용자의 모든 이벤트가 충돌 │ │ │ │ ✅ 좋은 예: │ │ key = f"{event_type}:{user_id}:{timestamp_ms}" │ │ │ │ 3. 추적 가능해야 함 │ │ ───────────────────── │ │ Key만 보고 어떤 작업인지 알 수 있어야 디버깅 용이 │ │ │ │ ❌ 나쁜 예: │ │ key = "abc123def456" # 무슨 작업인지 모름 │ │ │ │ ✅ 좋은 예: │ │ key = "scan.completed:task-abc:user-123:v2" │ │ │ └─────────────────────────────────────────────────────────────┘Key 구성 패턴
패턴 예시 사용 사례 Event 기반 {event_id}CloudEvents 사용 시 Aggregate 기반 {aggregate_id}:{version}Event Sourcing 작업 기반 {task_id}:{step}Saga/Pipeline 사용자 기반 {user_id}:{action}:{date}일일 제한 복합 {type}:{aggregate}:{event_id}범용 트랜잭션과의 통합
문제: 처리 완료 후 마킹 전 크래시
┌─────────────────────────────────────────────────────────────┐ │ 트랜잭션 경계 문제 │ ├─────────────────────────────────────────────────────────────┤ │ │ │ ❌ 문제 있는 구현: │ │ │ │ async def handle(message): │ │ if await store.is_processed(message.id): │ │ return │ │ │ │ await db.execute("UPDATE ...") # 1. 비즈니스 로직 │ │ # ← 여기서 크래시하면? │ │ await store.mark_processed(message.id) # 2. 마킹 │ │ │ │ → 비즈니스 로직은 실행됐는데 마킹 안 됨 │ │ → 재시작 시 또 실행됨 (중복!) │ │ │ │ ✅ 해결: 같은 트랜잭션에서 처리 │ │ │ │ async def handle(message): │ │ async with db.begin() as tx: │ │ # 같은 트랜잭션에서 체크 + 마킹 + 비즈니스 로직 │ │ result = await tx.execute(""" │ │ INSERT INTO processed_events (event_id) │ │ VALUES (:id) ON CONFLICT DO NOTHING │ │ RETURNING event_id │ │ """, {"id": message.id}) │ │ │ │ if not result: │ │ return # 이미 처리됨 │ │ │ │ await tx.execute("UPDATE ...") # 비즈니스 로직 │ │ # 트랜잭션 커밋 시 둘 다 적용 │ │ │ └─────────────────────────────────────────────────────────────┘참고 자료
- Idempotent Receiver - Enterprise Integration Patterns
- Handling Duplicate Messages - Chris Richardson
- Exactly-once Semantics in Kafka - Confluent
부록: Eco² 적용 포인트
Character 보상 중복 지급 방지
┌─────────────────────────────────────────────────────────────┐ │ Eco² Character 보상 Idempotency │ ├─────────────────────────────────────────────────────────────┤ │ │ │ 시나리오: │ │ • ScanCompleted 이벤트 → Character 보상 지급 │ │ • 같은 스캔으로 보상이 두 번 지급되면 안 됨 │ │ │ │ Idempotency Key 설계: │ │ key = f"reward:{scan_task_id}:{user_id}" │ │ │ │ • scan_task_id: 어떤 스캔인지 │ │ • user_id: 누구에게 지급하는지 │ │ • 같은 스캔 + 같은 사용자 = 같은 Key │ │ │ └─────────────────────────────────────────────────────────────┘Celery Task Idempotency
# domains/scan/tasks/ai_pipeline.py @celery_app.task(bind=True, max_retries=3) def process_image(self, task_id: str, image_url: str, idempotency_key: str): """AI 파이프라인 (멱등)""" # 1. 이미 처리되었는지 확인 if redis.exists(f"celery:processed:{idempotency_key}"): logger.info(f"Task already processed: {idempotency_key}") return {"status": "already_processed"} try: # 2. 처리 시작 표시 (동시 실행 방지) acquired = redis.setnx(f"celery:processing:{idempotency_key}", "1") if not acquired: logger.info(f"Task already processing: {idempotency_key}") return {"status": "already_processing"} redis.expire(f"celery:processing:{idempotency_key}", 600) # 10분 타임아웃 # 3. AI 처리 result = vision_api.analyze(image_url) answer = llm_api.generate(result) # 4. 완료 표시 redis.setex(f"celery:processed:{idempotency_key}", 86400 * 7, "1") redis.delete(f"celery:processing:{idempotency_key}") return {"classification": result, "answer": answer} except Exception as exc: redis.delete(f"celery:processing:{idempotency_key}") raise self.retry(exc=exc)AS-IS vs TO-BE
중복 방지 클라이언트 책임 Consumer Idempotency 저장소 없음 Redis TTL + DB 추적 Key 설계 없음 CloudEvents id + 비즈니스 ID 트랜잭션 gRPC 단위 DB 트랜잭션 내 체크+마킹 재시도 Circuit Breaker Idempotent 재처리 추적 로그만 processed_events 테이블 '이코에코(Eco²) > Foundations' 카테고리의 다른 글
