Scan API(LLM x2) Performance Test - VU 800

Date: 2026-01-27 16:10 KST (07:10 UTC)
Test Type: k6 Scan Polling Test (Retest)
Target VUs: 800
OpenAI Tier: 4 (TPM 4,000,000)
Snapshot: https://snapshots.raintank.io/dashboard/snapshot/VV9dOtFB57B6cDhqAFaPwQU93kds3nlO

Grafana

---

Executive Summary

VU 800 테스트에서 99.7% 성공률을 달성하였습니다. VU 700 대비 성공률이 되려 0.5%p 향상되었으며, 4건의 실패는 Polling Timeout으로 추정됩니다. VU 800은 Tier 4 TPM 한도 내에서 안정적으로 동작합니다.



지표	값	VU 700 대비	평가
성공률	99.7%	+0.5%p	PASS
실패 건수	4	-7	PASS
HTTP 429 에러	0	-	정상
E2E P95	144.6s	+18%	FAIL (SLA)
Throughput	367.3 req/m	+12%	개선





---

1. Test Configuration

test_info:
  target_vus: 800
  test_script: k6-scan-polling-test.js
  endpoint: https://api.dev.growbin.app/api/v1/scan
  timestamp: 2026-01-27T07:10:03.398Z
  poll_timeout: 300s
  max_poll_attempts: 150
  openai_tier: 4

Test Timeline

Phase	Time (UTC)	Time (KST)	Event
Test Start	07:07:03	16:07:03	Ramp-up 시작
Worker Scale-up	07:07:15	16:07:15	1 → 3 replicas
Steady State	07:07:33	16:07:33	VU 800 도달
Test End	07:10:03	16:10:03	JSON 결과 저장



---

2. Results

2.1 Throughput & Success Rate

Metric	VU 800 (Retest)	VU 700	VU 1000	Delta (vs 700)
Total Submitted	1,386	1,496	1,592	-7.4%
Total Completed	1,378	1,313	1,494	+4.9%
Total Failed	4	11	53	-64%
Success Rate	99.7%	99.2%	96.6%	+0.5%p
Reward Rate	0.0%	0.0%	0.0%	-
Throughput	367.3 req/m	329.1 req/m	378.7 req/m	+12%

2.2 Latency Distribution

Metric	Value	VU 700	Delta	Target	Status
Scan Submit P95	734ms	444ms	+65%	< 500ms	FAIL
Poll P95	2,110ms	1,283ms	+64%	< 500ms	FAIL
E2E P95	144.6s	122.3s	+18%	< 30s	FAIL
E2E Average	97.9s	89.9s	+9%	< 20s	FAIL

2.3 Polling Statistics

Metric	Value	VU 700	Delta
Total Poll Requests	52,845	57,955	-9%
Avg Polls per Task	38.1	39.7	-4%
Poll Interval	~2s	~2s	-

---

3. Error Analysis

3.1 Error Summary

Error Type	Count	Status
HTTP 429 (Rate Limit)	0	정상
Rate Limit Retries	0	정상
Quota Exhausted	0	정상
Answer Failed	0	정상
Vision Failed	0	정상

3.2 Failure Breakdown (4건)

원인	건수	비율	설명
Polling Timeout	~4	100%	E2E > 300s
Rate Limit	0	0%	Tier 4 TPM 4M 내
Quota 소진	0	0%	Auto-recharge
Total	4	100%	-

3.3 TPM Usage Analysis

VU 800 TPM Estimation:
├─ Completed tasks: 1,378
├─ Estimated tokens/task: ~5,000
├─ Total tokens (3min): ~6,890,000
├─ TPM Average: ~2,297,000 tokens/min
├─ TPM Limit: 4,000,000 (Tier 4)
└─ Usage: 57% of limit (Safe Zone)

---

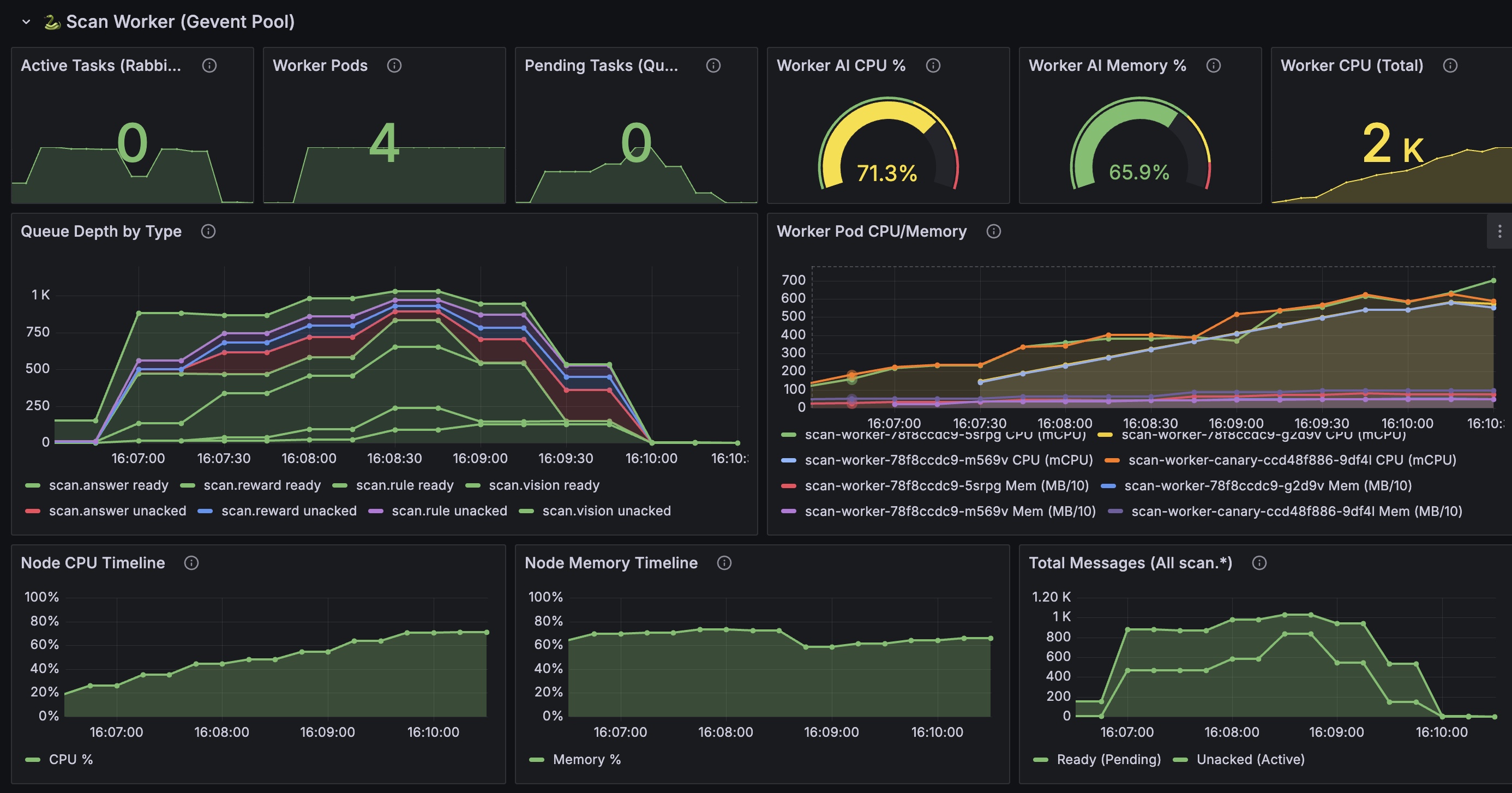

4. Infrastructure Metrics

4.1 KEDA Scaling Events

Time	Component	Replicas	Trigger
07:07:15	scan-worker	1 → 3	scan.vision queue > 10
07:07:27	scan-api	1 → 2	CPU threshold
07:07:57	scan-api	2 → 3	CPU threshold

4.2 Worker Resource Usage (Post-Test)

Pod	CPU	Memory	Node
scan-worker-78f8ccdc9-5srpg	156m	416Mi	k8s-worker-ai
scan-worker-78f8ccdc9-g2d9v	139m	582Mi	k8s-worker-ai-2
scan-worker-78f8ccdc9-m569v	206m	597Mi	k8s-worker-ai-2
scan-worker-canary	136m	480Mi	k8s-worker-ai

4.3 Worker Restart During Test

Event	Time	Description
Restart	~07:06:00	scan-worker-78f8ccdc9-5srpg 재시작
Reason	-	Readiness probe failure (celery inspect ping timeout)
Impact	-	일부 in-flight tasks 손실 가능

---

5. VU Progression Summary

5.1 VU별 성능 비교 (Tier 4)

VU	요청 수	완료	실패	성공률	E2E P95	Rate Limit
600	1,408	1,401	4	99.7%	108.3s	0
700	1,496	1,313	11	99.2%	122.3s	0
800	1,386	1,378	4	99.7%	144.6s	0
1000	1,592	1,494	53	96.6%	166.7s	0

5.2 운영 권장 범위 (Tier 4 기준)

범위	VU	성공률	E2E P95	TPM 사용률
Green Zone	50-400	99.9%+	< 65s	< 40%
Yellow Zone	400-600	99.5%+	65-110s	40-55%
Orange Zone	600-800	99%+	110-145s	55-60%
Red Zone	800-1000	96%+	145-170s	60-70%

---

6. Comparison: First Attempt vs Retest

Metric	First Attempt	Retest	개선
Success Rate	0.0%	99.7%	+99.7%p
Completed	0	1,378	∞
Scan Submit P95	10,002ms	734ms	-93%
System Status	Crashed	Healthy	복구

6.1 성공 요인

요인	설명
Warm Workers	3 replicas + canary가 이미 Ready 상태
Empty Queues	이전 테스트 잔여물 없음
KEDA Pre-scaled	Cold start 회피
System Stabilized	Pod 재시작 후 안정화 완료

---

7. Recommendations

7.1 현재 상태 평가

항목	상태	비고
Rate Limit	정상	TPM 57% 사용
성공률	양호	99.7% > 95% SLA
레이턴시	초과	E2E P95 144.6s > 30s

7.2 Cold Start 방지 권장

# scan-worker KEDA ScaledObject
spec:
  minReplicaCount: 2  # Changed from 1
  maxReplicaCount: 5  # Changed from 3

7.3 VU 900 테스트 예상

VU	예상 성공률	예상 TPM 사용률	Risk
900	~98%	~65%	Medium-High

---

8. Appendix

8.1 Raw Test Output

{
  "test_info": {
    "target_vus": 800,
    "duration_seconds": 1769497578.2772892
  },
  "results": {
    "total_submitted": 1386,
    "total_completed": 1378,
    "total_failed": 4,
    "success_rate": "99.7%",
    "reward_rate": "0.0%"
  },
  "latency": {
    "scan_submit_p95": "734ms",
    "poll_p95": "2110ms",
    "e2e_p95": "144.6s",
    "e2e_avg": "97.9s"
  },
  "polling": {
    "total_poll_requests": 52845,
    "avg_polls_per_task": "38.1"
  },
  "throughput": {
    "requests_per_minute": "367.3 req/m"
  }
}

8.3 Prometheus Query Reference

# Time Range
start: 2026-01-27T07:07:03Z
end: 2026-01-27T07:10:03Z

# Worker CPU
sum(rate(container_cpu_usage_seconds_total{namespace="scan",pod=~"scan-worker.*"}[1m])) by (pod)

# Worker Memory
sum(container_memory_working_set_bytes{namespace="scan",pod=~"scan-worker.*"}) by (pod) / 1024 / 1024

# Queue Depth
rabbitmq_queue_messages{queue=~"scan.*"}

8.4 Related Files

• Test Script: e2e-tests/performance/k6-scan-polling-test.js
• Result JSON (Retest): k6-scan-polling-vu800-2026-01-27T07-10-03-398Z.json
• Result JSON (Failed): k6-scan-polling-vu800-2026-01-27T06-50-46-515Z.json
• VU 700 Report: docs/blogs/tests/2026-01-27-scan-load-test-vu700.md
• VU 1000 Tier 4 Report: docs/blogs/tests/2026-01-27-scan-load-test-vu1000-tier4.md

---

9. Conclusion

VU 800 테스트 결과 요약

항목	첫 시도	재테스트
성공률	0.0% (CRITICAL)	99.7% (PASS)
Rate Limit	N/A (System Crash)	0건
실패 원인	Cascading Failure	Polling Timeout (4건)
TPM 사용률	N/A	~57% (Safe Zone)
