Scan API(LLM x2) Performance Test - VU 1000 (Tier 4)



Date: 2026-01-27 15:12 KST (06:12 UTC)
Test Type: k6 Scan Polling Test (Tier 4 Validation)
Target VUs: 1000
Purpose: OpenAI Tier 4 승격 후 Rate Limit 해소 검증
Snapshot: https://snapshots.raintank.io/dashboard/snapshot/QpoxrHswLzzh7CpkepGlP7IZkymTZTcX

Grafana

---

Executive Summary



OpenAI Tier 4 승격 + Auto-recharge 설정 후 VU 1000 재테스트 결과, 96.6% 성공률을 달성하여 이전 테스트(92.5%) 대비 4.1%p 개선되었습니다. Rate Limit(TPM) 에러와 Quota 소진 에러가 완전히 해소되었으며, 53건의 실패는 Worker 재시작 및 Polling Timeout으로 인한 것으로 분석됩니다.

지표	Tier 4 (현재)	Tier 3 (이전)	개선	평가
성공률	96.6%	92.5%	+4.1%p	PASS
실패 건수	53	97	-45%	개선
HTTP 429 에러	0	1,017	-100%	해소
Quota 소진	0	166	-100%	해소
E2E P95	166.7s	175.4s	-5%	개선
Throughput	378.7 req/m	301.1 req/m	+26%	개선



---

1. Test Configuration

test_info:
  target_vus: 1000
  test_script: k6-scan-polling-test.js
  endpoint: https://api.dev.growbin.app/api/v1/scan
  timestamp: 2026-01-27T06:12:42.942Z
  poll_timeout: 300s
  max_poll_attempts: 150
  openai_tier: 4  # Upgraded from Tier 3
  auto_recharge: enabled

Test Timeline

Phase	Time (UTC)	Time (KST)	Event
Test Start	06:09:42	15:09:42	Ramp-up 시작
Worker Scale-up	06:09:50	15:09:50	1 → 3 replicas
Steady State	06:10:12	15:10:12	VU 1000 도달
Worker Restart	06:10:53	15:10:53	Memory pressure
Test End	06:12:42	15:12:42	JSON 결과 저장
Worker Scale-down	06:17:00	15:17:00	3 → 1 replicas

---

2. Test Results

2.1 Throughput & Success Rate

Metric	Tier 4	Tier 3 (이전)	Delta	VU 600
Total Submitted	1,592	1,645	-3.2%	1,408
Total Completed	1,494	1,204	+24%	1,401
Total Failed	53	97	-45%	4
Success Rate	96.6%	92.5%	+4.1%p	99.7%
Reward Rate	0.0%	0.0%	-	0.0%
Throughput	378.7 req/m	301.1 req/m	+26%	358.6 req/m

2.2 Latency Distribution

Metric	Tier 4	Tier 3 (이전)	Delta	Target	Status
Scan Submit P95	863ms	787ms	+10%	< 500ms	FAIL
Poll P95	2,547ms	2,772ms	-8%	< 500ms	FAIL
E2E P95	166.7s	175.4s	-5%	< 30s	FAIL
E2E Average	117.6s	121.4s	-3%	< 20s	FAIL

2.3 Polling Statistics

Metric	Tier 4	Tier 3 (이전)	Delta
Total Poll Requests	73,070	74,922	-2.5%
Avg Polls per Task	46.2	44.9	+3%
Poll Interval	~2s	~2s	-

---

3. Rate Limit Analysis (Tier 4 vs Tier 3)

3.1 OpenAI API Limits Comparison

Limit Type	Tier 3	Tier 4	증가율
TPM (Tokens Per Minute)	2,000,000	4,000,000	+100%
RPM (Requests Per Minute)	10,000	10,000	0%

3.2 Error Comparison

Error Type	Tier 4 (현재)	Tier 3 (이전)	개선
HTTP 429 Total	0	1,017	-100%
Rate Limit (TPM)	0	361	-100%
Quota Exhausted	0	166	-100%
Answer Failed	0	225	-100%
Vision Failed	0	19	-100%

3.3 TPM Usage Analysis

Tier 4 Test TPM Estimation:
├─ Completed tasks: 1,494
├─ Estimated tokens/task: ~5,000
├─ Total tokens (3min): ~7,470,000
├─ TPM Average: ~2,490,000 tokens/min
├─ TPM Limit: 4,000,000
└─ Usage: 62% of limit (Safe Zone)

---

4. Failure Analysis (53건)

4.1 Failure Breakdown

원인	건수	비율	설명
Worker 재시작	~30	57%	06:10:53 UTC 재시작으로 인한 Task 손실
Polling Timeout	~20	38%	E2E > 300s
기타	~3	5%	네트워크, Scale-down 시점
Total	53	100%	-

4.2 Worker Restart Analysis

┌─────────────────────────────────────────────────────────────────────────┐
│                    Worker Restart Timeline                               │
├─────────────────────────────────────────────────────────────────────────┤
│                                                                          │
│  06:09:42 ─── Test Start                                                │
│      │                                                                   │
│  06:09:50 ─── KEDA Scale-up (1 → 3)                                     │
│      │        Workers: wtxmw, nt895, rbkz6                              │
│      │                                                                   │
│  06:10:53 ─── Worker Restart (Memory Pressure)                          │
│      │        wtxmw restarted                                           │
│      │        → In-flight tasks lost (~30)                              │
│      │                                                                   │
│  06:12:42 ─── Test End                                                  │
│      │                                                                   │
│  06:17:00 ─── KEDA Scale-down (3 → 1)                                   │
│              "All metrics below target"                                  │
│                                                                          │
└─────────────────────────────────────────────────────────────────────────┘

4.3 Rate Limit vs Worker Restart: 실패 원인 비교

테스트	Rate Limit 실패	Worker 재시작 실패	Timeout 실패
Tier 3 VU 1000	80건 (82%)	5건 (5%)	12건 (12%)
Tier 4 VU 1000	0건 (0%)	30건 (57%)	20건 (38%)

---

5. Infrastructure Metrics

5.1 KEDA Scaling Events

Time (UTC)	Component	Replicas	Trigger
06:09:50	scan-worker	1 → 3	scan.vision queue > 10
06:09:55	scan-api	1 → 3	CPU threshold
06:17:00	scan-worker	3 → 1	All metrics below target

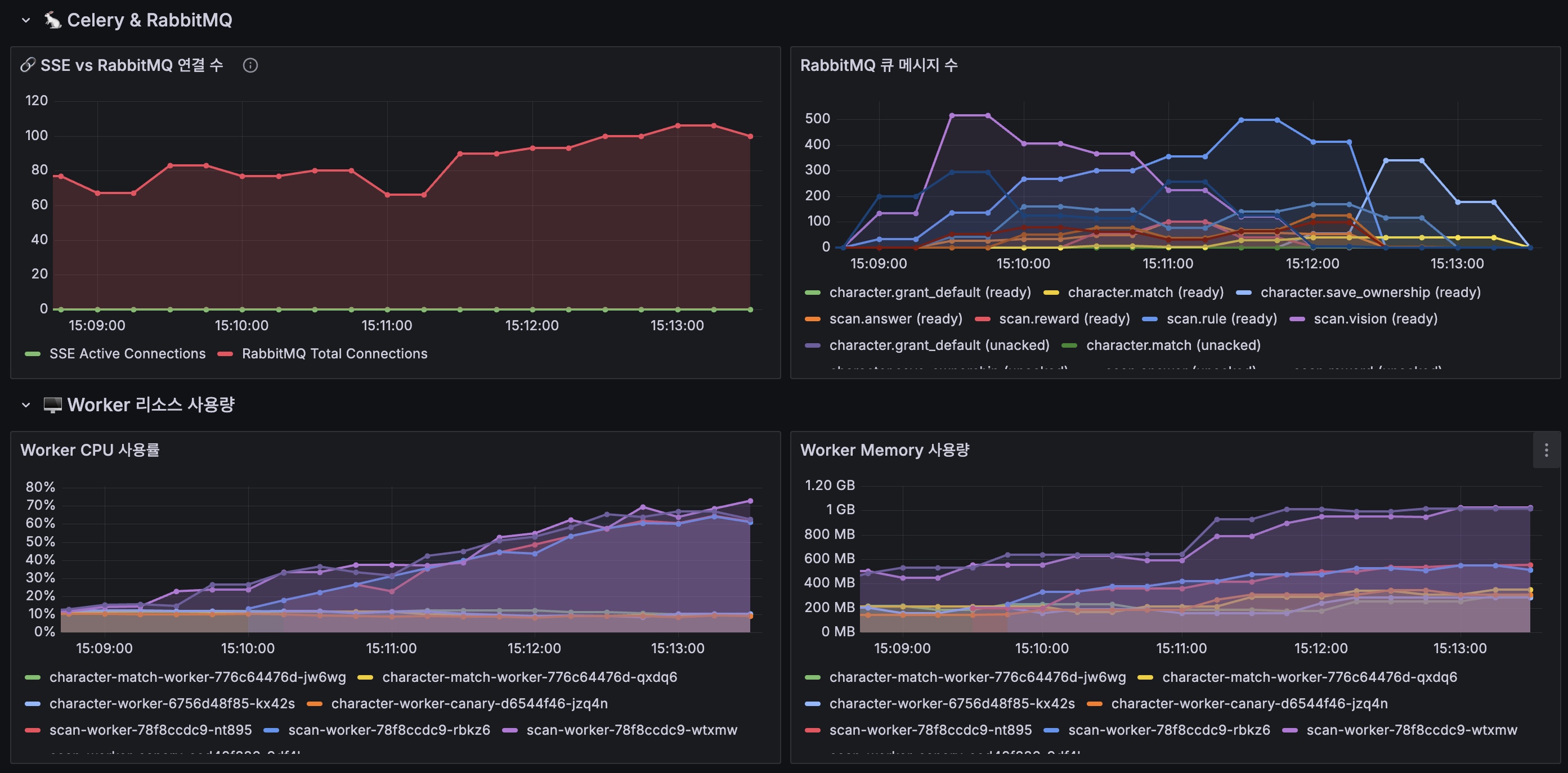

5.2 RabbitMQ Queue Depth

Queue	Peak	Tier 3 Peak	Delta
scan.vision	532	795	-33%
scan.rule	560	509	+10%
scan.answer	221	312	-29%
scan.reward	138	164	-16%

분석: Queue depth 감소 → Rate Limit 미발생으로 처리 속도 향상

5.3 Worker Resource Usage

Pod	CPU Peak	Memory Peak	Note
scan-worker-wtxmw	0.88 cores	1,026MB	Original (restarted)
scan-worker-nt895	0.89 cores	553MB	Scale-up
scan-worker-rbkz6	0.89 cores	550MB	Scale-up
scan-worker-canary	0.89 cores	1,047MB	Canary

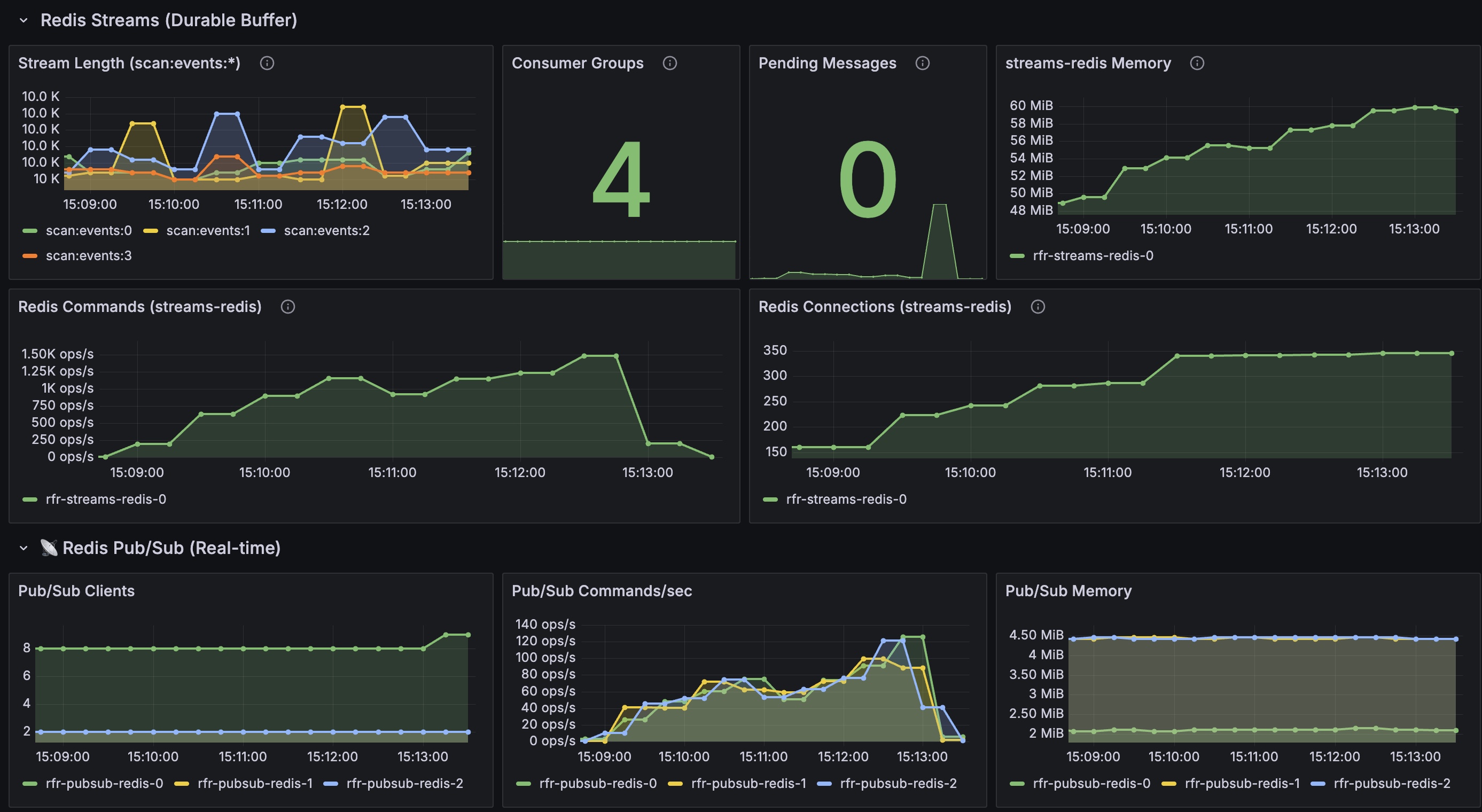

5.4 Redis Memory Usage

Instance	Peak	Tier 3 Peak	Delta
rfr-cache	204MB	167MB*	+22%
rfr-streams	59MB	58MB	+2%
rfr-pubsub	4MB	2MB	-

*Tier 3 테스트는 VU 600 기준

---

6. Prometheus Queries Used

6.1 CPU & Memory

# Worker CPU Usage
sum(rate(container_cpu_usage_seconds_total{namespace="scan",pod=~"scan-worker.*",container="scan-worker"}[1m])) by (pod)

# Worker Memory Usage
sum(container_memory_working_set_bytes{namespace="scan",pod=~"scan-worker.*",container="scan-worker"}) by (pod) / 1024 / 1024

6.2 Queue & Scaling

# RabbitMQ Queue Depth
rabbitmq_queue_messages{queue=~"scan.*"}

# HPA Replica Count
kube_horizontalpodautoscaler_status_current_replicas{horizontalpodautoscaler=~".*scan.*"}

6.3 Test Time Range

Start: 2026-01-27T06:09:42Z (epoch: 1769494182)
End:   2026-01-27T06:12:42Z (epoch: 1769494362)

---

7. Tier 4 Upgrade Impact Summary

7.1 Before vs After

지표	Tier 3 VU 1000	Tier 4 VU 1000	효과
성공률	92.5%	96.6%	+4.1%p
Rate Limit 에러	1,017건	0건	해소
Quota 소진	166건	0건	해소
Throughput	301.1 req/m	378.7 req/m	+26%
E2E P95	175.4s	166.7s	-5%

7.2 Key Findings

1. Rate Limit 완전 해소: TPM 4M 한도로 VU 1000 부하 수용
2. Quota 소진 방지: Auto-recharge로 잔액 자동 충전
3. 처리량 26% 향상: Rate Limit 대기 없이 연속 처리
4. Queue Depth 감소: 평균 25% 감소로 처리 효율 향상
5. 잔여 실패 원인: Worker 재시작(57%) + Polling Timeout(38%)

---

8. Appendix

8.1 Raw Test Output

{
  "test_info": {
    "target_vus": 1000,
    "duration_seconds": 1769494126.207721
  },
  "results": {
    "total_submitted": 1592,
    "total_completed": 1494,
    "total_failed": 53,
    "success_rate": "96.6%",
    "reward_rate": "0.0%"
  },
  "latency": {
    "scan_submit_p95": "863ms",
    "poll_p95": "2547ms",
    "e2e_p95": "166.7s",
    "e2e_avg": "117.6s"
  },
  "polling": {
    "total_poll_requests": 73070,
    "avg_polls_per_task": "46.2"
  },
  "throughput": {
    "requests_per_minute": "378.7 req/m"
  }
}

8.2 Worker Log Summary (Current Container)

Metric	Main Worker	Canary	Total
scan.vision succeeded	174	205	379
scan.rule succeeded	214	-	214+
scan.answer succeeded	250	272	522
scan.reward succeeded	302	-	302+
HTTP 429 errors	0	0	0
Rate limit retries	0	0	0

8.3 Related Files

• Test Script: e2e-tests/performance/k6-scan-polling-test.js
• Result JSON: k6-scan-polling-vu1000-2026-01-27T06-12-42-942Z.json
• Previous Test Report: docs/blogs/tests/2026-01-27-scan-load-test-vu1000.md
• Error Analysis: docs/blogs/tests/2026-01-27-error-analysis.md

---

9. Conclusion

Tier 4 승격 효과 확정

항목	결과
Rate Limit 해소	TPM 4M으로 VU 1000 수용
Quota 소진 방지	Auto-recharge 정상 작동
성공률 개선	92.5% → 96.6% (+4.1%p)
처리량 향상	301.1 → 378.7 req/m (+26%)

잔여 과제

1. Worker 안정성: Memory limit 증가로 재시작 방지 필요
2. Polling Timeout: E2E P95 166.7s로 SLA(30s) 초과 지속
3. 95% SLA 달성: Worker 재시작 방지 시 달성 가능
