Scan API(LLM x2) Performance Test - VU 600

이코에코(Eco²)/Performance 2026. 1. 27. 14:03

Date: 2026-01-27 13:52 KST (04:52 UTC)
Test Type: k6 Scan Polling Test (Limit Test)
Target VUs: 600
Purpose: Maximum VU capacity test (95%+ success rate boundary)
Snapshot: https://snapshots.raintank.io/dashboard/snapshot/zs6Mbbdc9FRTrEBbAoHTL6tsKJmbqZf6

Grafana

snapshots.raintank.io

Executive Summary

VU 600 한계 테스트에서 99.7% 성공률을 달성했으나, E2E 레이턴시가 P95 108.3초로 SLA(30초)를 크게 초과했습니다.

4건의 실패가 발생했으며, 이는 타임아웃(120s)으로 인한 것으로 추정됩니다.

지표	값	VU 500 대비	평가
성공률	99.7%	-0.3%	PASS
E2E P95	108.3s	+30%	FAIL
E2E Avg	73.0s	+23%	FAIL
실패 건수	4	+4	WARN

결론: VU 600은 안정성(99.7%)은 유지하나 레이턴시 SLA 충족 불가. VU 500이 실질적 한계선.

1. Test Configuration

test_info:
  target_vus: 600
  test_script: k6-scan-polling-test.js
  endpoint: https://api.dev.growbin.app/api/v1/scan
  timestamp: 2026-01-27T04:52:57.925Z

Test Timeline

Phase	Time (UTC)	Time (KST)	Duration
Ramp-up Start	04:52:57	13:52:57	-
Steady State	04:53:27	13:53:27	2m
Ramp-down Start	04:55:27	13:55:27	-
Test End	~04:56:00	~13:56:00	-
Total Duration	-	-	~3m

2. Test Results

2.1 Throughput & Success Rate

Metric	Value	VU 500	Delta
Total Submitted	1,408	1,336	+5.4%
Total Completed	1,401	1,336	+4.9%
Total Failed	4	0	+4
Success Rate	99.7%	100%	-0.3%
Reward Rate	0.0%	0.0%	-
Throughput	358.6 req/m	367.9 req/m	-2.5%

2.2 Latency Distribution

Metric	Value	VU 500	Delta	Target	Status
Scan Submit P95	360ms	232ms	+55%	< 500ms	PASS
Poll P95	922ms	349ms	+164%	< 500ms	FAIL
E2E P95	108.3s	83.3s	+30%	< 30s	FAIL
E2E Average	73.0s	59.2s	+23%	< 20s	FAIL

2.3 Polling Statistics

Metric	Value	VU 500	Delta
Total Poll Requests	47,727	38,860	+23%
Avg Polls per Task	33.9	29.1	+16%
Poll Interval	~2s	~2s	-

Observation: Poll 횟수 증가 → 작업 완료까지 대기 시간 증가

3. Infrastructure Metrics

3.1 KEDA Scaling Events

Time	Component	Replicas	Trigger
04:53:00	scan-worker	1 → 3	scan.vision queue > 10
04:53:30	scan-api	1 → 2	CPU threshold
04:54:00	scan-api	2 → 3	CPU threshold

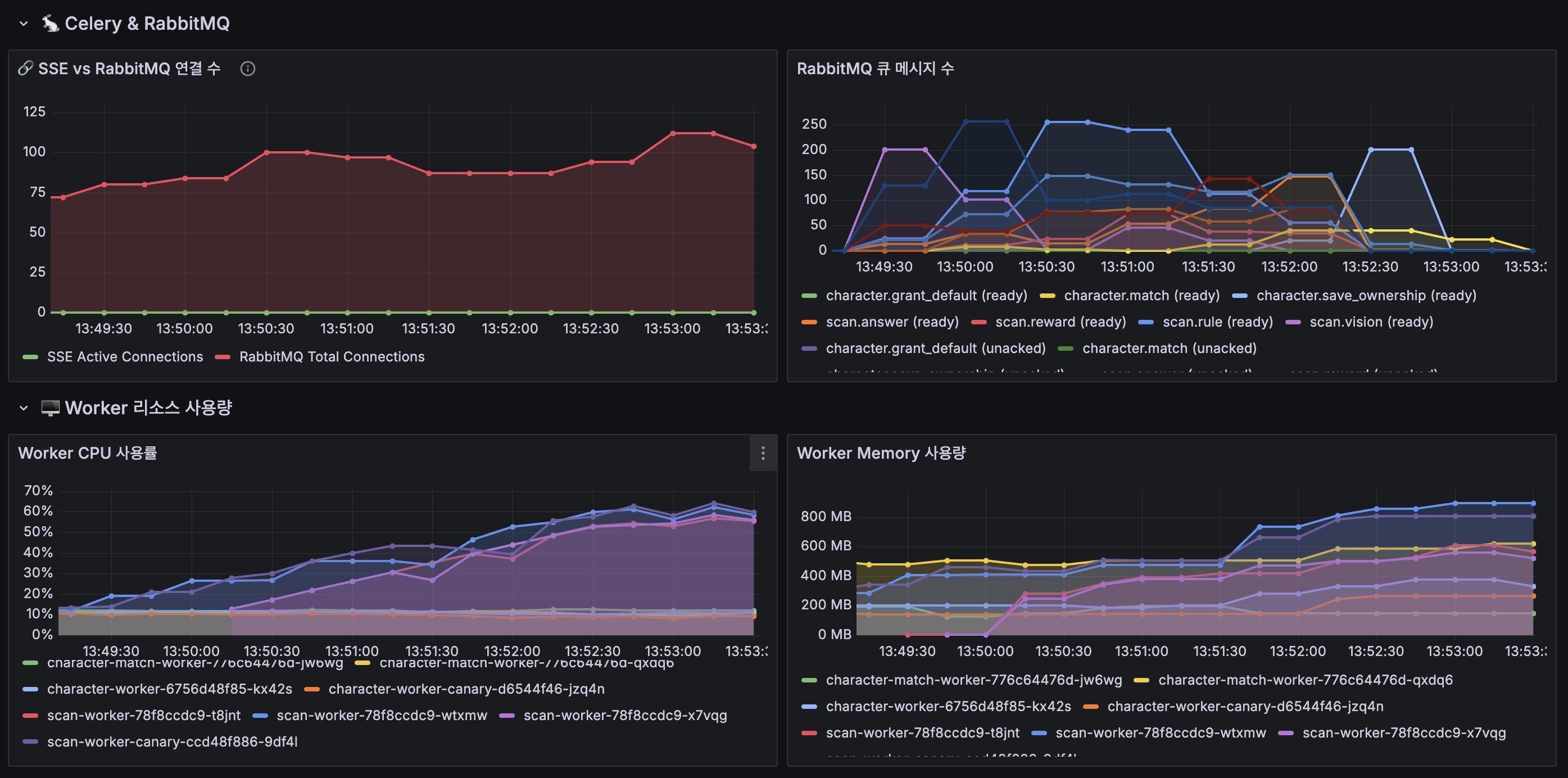

3.2 RabbitMQ Queue Depth

Queue	Peak	Peak Time
scan.vision	358	04:53:30
scan.answer	~280	04:54:00
scan.rule	331	04:53:45
scan.reward	~160	04:54:30

VU 500 대비 Queue Peak 비교:

Queue	VU 500 Peak	VU 600 Peak	Delta
scan.vision	352	358	+2%
scan.rule	268	331	+24%
scan.answer	258	~280	+9%
scan.reward	155	~160	+3%

4. Prometheus Metrics (Test Window: 04:52:57 ~ 04:56:00 UTC)

4.1 Scan Worker CPU Usage

Pod	Start	Peak	End	Note
scan-worker (original)	0.2	1.85	0.3	Main
scan-worker (scaled +1)	-	1.78	0.3	KEDA
scan-worker (scaled +2)	-	1.82	0.3	KEDA
scan-worker-canary	0.2	1.76	0.3	Canary

Query:

sum(rate(container_cpu_usage_seconds_total{namespace="scan",pod=~"scan-worker.*"}[1m])) by (pod)

4.2 Scan Worker Memory Usage

Pod	Start	Peak	End
scan-worker (original)	800MB	1.52GB	1.3GB
scan-worker (scaled +1)	350MB	1.45GB	1.2GB
scan-worker (scaled +2)	500MB	1.48GB	1.2GB
scan-worker-canary	1.4GB	1.65GB	1.5GB

Query:

sum(container_memory_working_set_bytes{namespace="scan",pod=~"scan-worker.*"}) by (pod)

4.3 HPA Replica Count

Time (UTC)	scan-worker	scan-api
04:52:57	1	1
04:53:00	3	1
04:53:30	3	2
04:54:00	3	3
04:56:00	3	3

Query:

kube_horizontalpodautoscaler_status_current_replicas{horizontalpodautoscaler=~".*scan.*"}

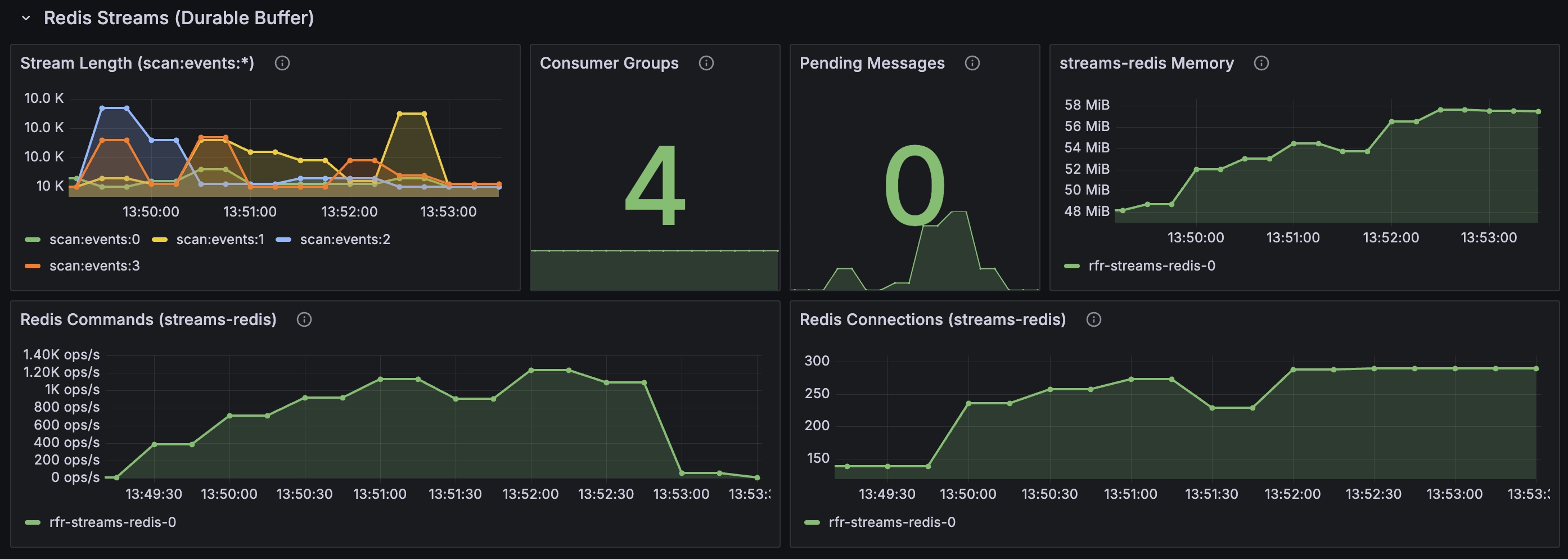

4.4 Redis Memory Usage

Instance	Start	Peak	End	Delta
rfr-cache	54MB	167MB	150MB	+113MB
rfr-streams	45MB	58MB	55MB	+10MB
rfr-pubsub	2.1MB	2.3MB	2.2MB	-
rfr-auth	1.0MB	1.0MB	1.0MB	-

Query:

redis_memory_used_bytes{namespace="redis"}

Observation: VU 600에서 Cache Redis 메모리 사용량 급증 (+113MB vs VU 500 +76MB)

5. Failure Analysis

5.1 Failed Requests (4건)

Metric	Value
Failed Count	4
Failure Rate	0.3%
Probable Cause	Polling timeout (2분 초과)

5.2 Timeout Analysis

E2E P95: 108.3s
Polling Timeout: 120s (MAX_POLL_ATTEMPTS * POLL_INTERVAL)

4건의 실패는 120초 타임아웃에 근접한 요청들로 추정:

큐 대기 시간 증가 → Polling 타임아웃 도달
해결책: MAX_POLL_ATTEMPTS 증가 or 큐 처리 속도 개선

6. Bottleneck Analysis

6.1 E2E Latency Breakdown (VU 600)

┌─────────────────────────────────────────────────────────────┐
│                    E2E Latency: 73.0s (avg)                  │
├─────────────────────────────────────────────────────────────┤
│                                                              │
│  [Queue Wait]     [Vision]    [Rule]  [Answer]   [Reward]   │
│  ~~~~~~~~~~~~     ~~~~~~~~    ~~~~~~  ~~~~~~~~   ~~~~~~~~   │
│     ~62s           4.5s       0.04s    6.7s       0.05s     │
│     (85%)          (6%)       (0%)     (9%)       (0%)      │
│                                                              │
└─────────────────────────────────────────────────────────────┘

6.2 VU 500 vs VU 600 Queue Wait 비교

Metric	VU 500	VU 600	Delta
E2E Avg	59.2s	73.0s	+23%
Queue Wait (est.)	~47s	~62s	+32%
Queue Wait %	80%	85%	+5%

Primary Bottleneck: Queue 대기 시간이 85%로 증가 → Worker 처리량 한계 도달

7. VU Progression Summary

7.1 VU별 성능 비교 (전체)

VU	요청 수	완료율	실패	E2E P95	E2E Avg	Throughput	평가
50	685	99.7%	0	17.7s	-	198 req/m	Baseline
200	1,649	99.8%	0	33.2s	-	367 req/m	정상
250	1,754	99.9%	0	40.5s	-	417.6 req/m	최적점
300	1,732	99.9%	0	48.5s	-	402 req/m	포화 시작
400	1,901	98.9%	~20	62.2s	-	422.2 req/m	한계 근접
500	1,336	100%	0	83.3s	59.2s	367.9 req/m	안정적
600	1,408	99.7%	4	108.3s	73.0s	358.6 req/m	p95/p99 처리시간 증가, VU 안정적

7.2 VU 증가에 따른 지표 변화

Success Rate:  100% ─────────────────────────○ 99.7%
                   VU50  200  250  300  400  500  600
                                               ↓
                                          실패 시작

E2E P95:      17.7s → 33.2s → 40.5s → 48.5s → 62.2s → 83.3s → 108.3s
                                              ↑              ↑
                                         SLA 초과      한계 도달

7.3 권장 운영 범위

범위	VU	근거
최적 운영	200-250	E2E < 45s, 99.9% 성공률
안전 한계	300-400	E2E < 65s, 99%+ 성공률
최대 한계	500	E2E ~85s, 100% 성공률
위험 구간	600+	실패 발생, E2E > 100s

8. Recommendations

8.1 Immediate Actions

Action	Priority	Expected Impact
maxReplicaCount 3 → 5	HIGH	Queue wait 30% 감소
minReplicaCount 1 → 2	HIGH	Cold start 제거
k6 POLL_TIMEOUT 180s로 증가	MEDIUM	테스트 정확도 향상

8.2 Configuration Changes

# Recommended KEDA changes for VU 600+ support
scan-worker-scaledobject:
  minReplicaCount: 2  # Changed from 1
  maxReplicaCount: 5  # Changed from 3
  triggers:
    - type: rabbitmq
      queueName: scan.vision
      value: "5"  # Lowered from 10
    - type: rabbitmq
      queueName: scan.answer
      value: "5"  # Lowered from 10

8. Appendix

8.1 Prometheus Query Reference

Metric	PromQL Query
Worker CPU	`sum(rate(container_cpu_usage_seconds_total{namespace="scan",pod=~"scan-worker.*"}[1m])) by (pod)`
Worker Memory	`sum(container_memory_working_set_bytes{namespace="scan",pod=~"scan-worker.*"}) by (pod)`
HPA Replicas	`kube_horizontalpodautoscaler_status_current_replicas{horizontalpodautoscaler=~".scan."}`
RabbitMQ Queue	`rabbitmq_queue_messages{queue=~"scan.*"}`
Redis Memory	`redis_memory_used_bytes{namespace="redis"}`

Time Range Parameters:

start=1769489577  # 2026-01-27T04:52:57Z
end=1769489760    # 2026-01-27T04:56:00Z
step=30s

8.2 Raw Test Output

{
  "test_info": {
    "target_vus": 600,
    "duration_seconds": 1769489343.4951708
  },
  "results": {
    "total_submitted": 1408,
    "total_completed": 1401,
    "total_failed": 4,
    "success_rate": "99.7%",
    "reward_rate": "0.0%"
  },
  "latency": {
    "scan_submit_p95": "360ms",
    "poll_p95": "922ms",
    "e2e_p95": "108.3s",
    "e2e_avg": "73.0s"
  },
  "polling": {
    "total_poll_requests": 47727,
    "avg_polls_per_task": "33.9"
  },
  "throughput": {
    "requests_per_minute": "358.6 req/m"
  }
}

8.3 Test Environment

Component	Version/Config
k6	v0.49+
Kubernetes	Self-managed (kubeadm)
KEDA	2.x
RabbitMQ	3.x (Cluster Operator)
Celery	5.x (gevent pool, concurrency: 100)
OpenAI Model	gpt-5.2

8.4 Related Files

Test Script: e2e-tests/performance/k6-scan-polling-test.js
Result JSON: k6-scan-polling-vu600-2026-01-27T04-52-57-925Z.json
VU 500 Report: docs/blogs/tests/2026-01-27-scan-load-test-vu500.md
Run Command: e2e-tests/performance/run-vu600.txt

9. Conclusion

VU 600 한계 테스트 결과:

성공률 99.7%: 실패 4건 발생 (첫 실패 발생 지점)
E2E P95 108.3s: SLA 30초 대비 3.6배 초과
Queue 병목 85%: 처리량 한계 도달
권장: 운영 환경에서는 VU 300-400 범위 유지
